New patented pin connector for magnet wire allows reducing production costs up to 80%

SM Contact offers the state-of-the-art solution for coil manufacturers.

Patented solution with P-in pin connector to reduce the cost of magnet wire connections

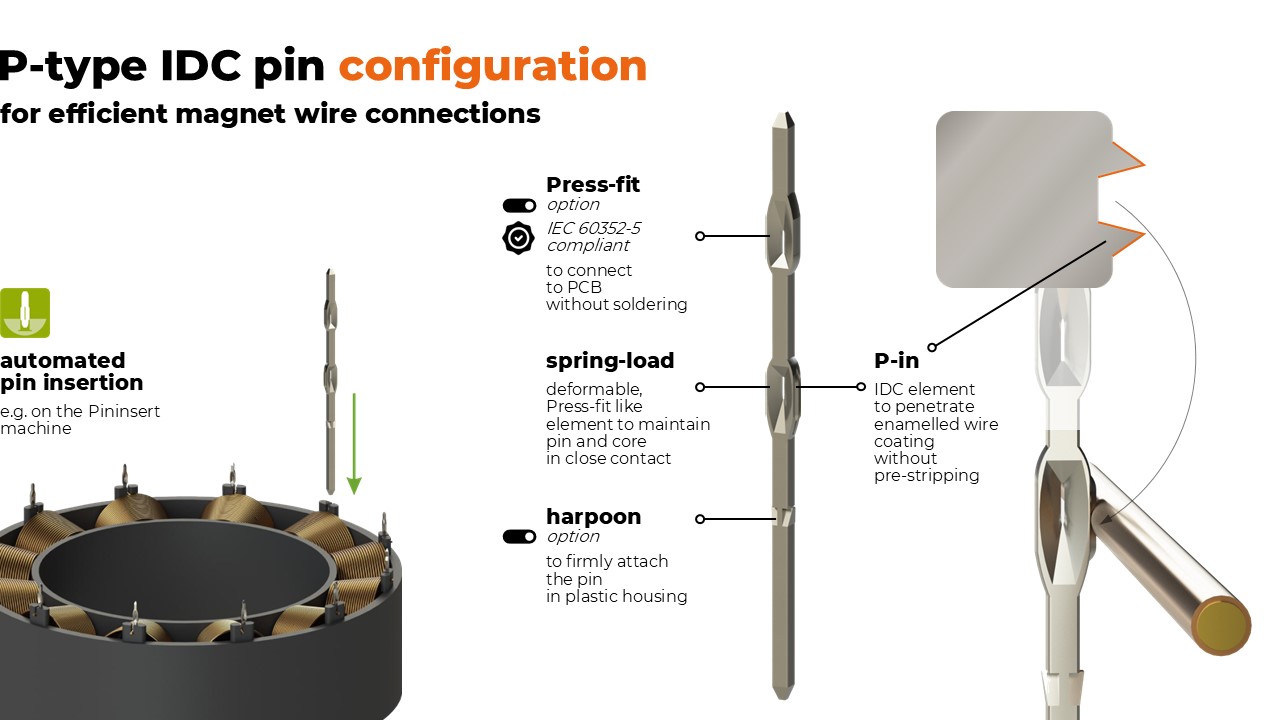

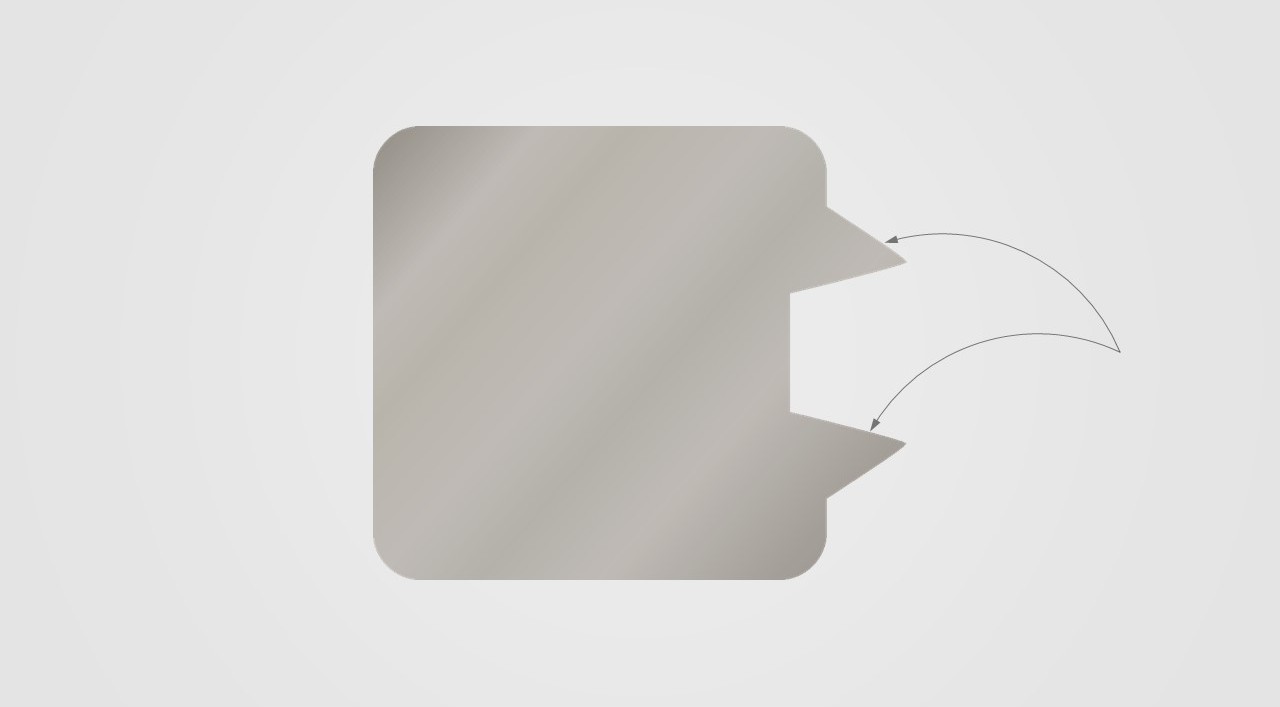

The P-type feature defines the simplest technology for IDC connector for magnet wire. It breaks the enamel layer when being inserted vertically.

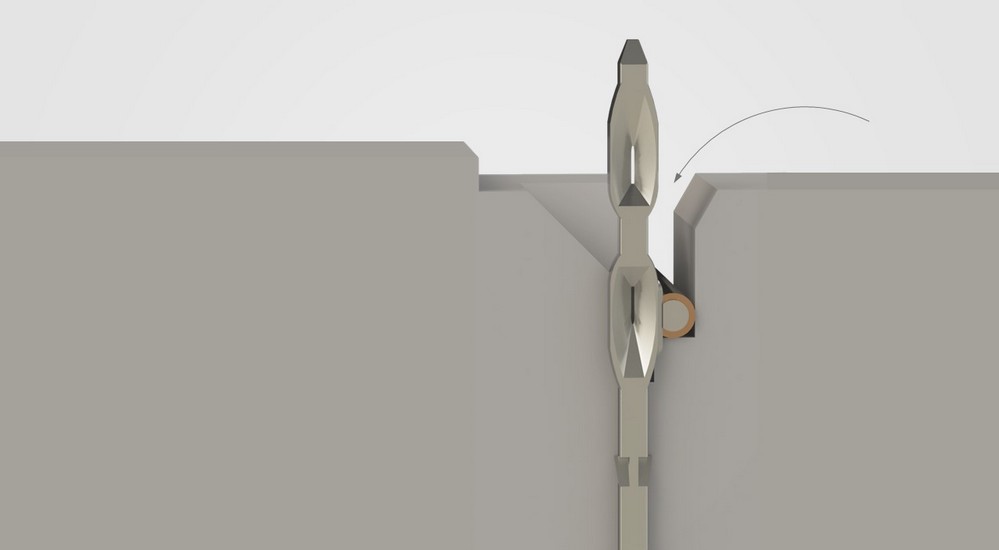

Magnet wire must be located in a simple dedicated groove in the plastic housing, similar to the classic approach.

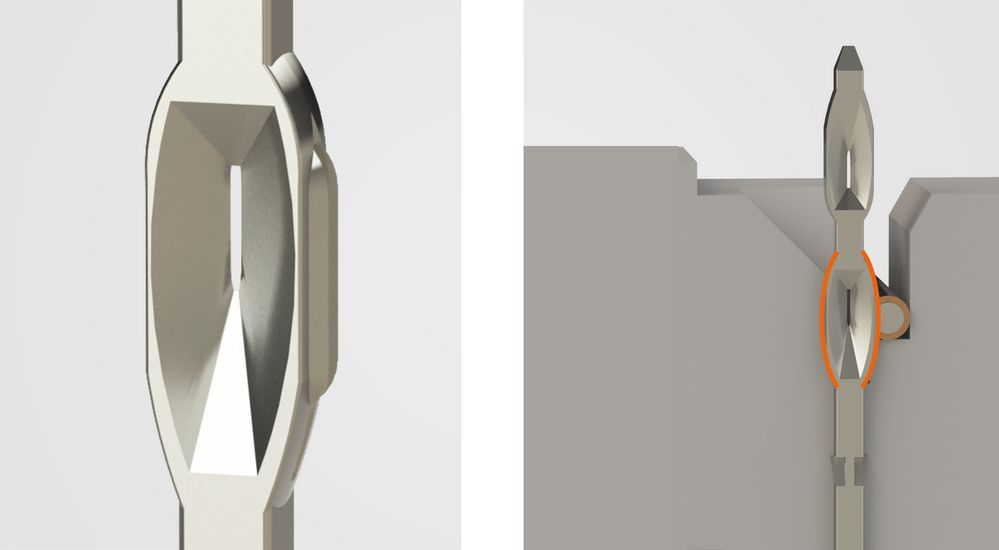

Electrical connection stability is reached by deformable spring load (press-fit like) geometry. It maintains the pin and conductive core of magnet wire in contact.

Pin connector for magnet wire brochure

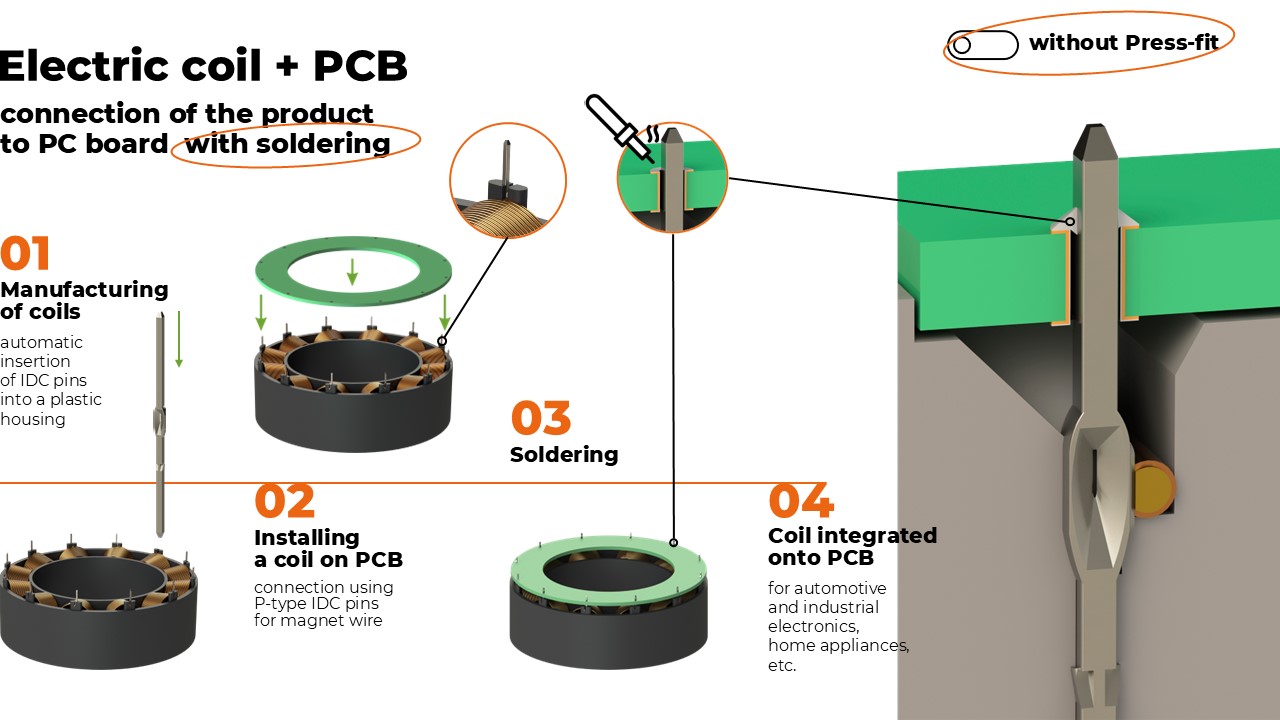

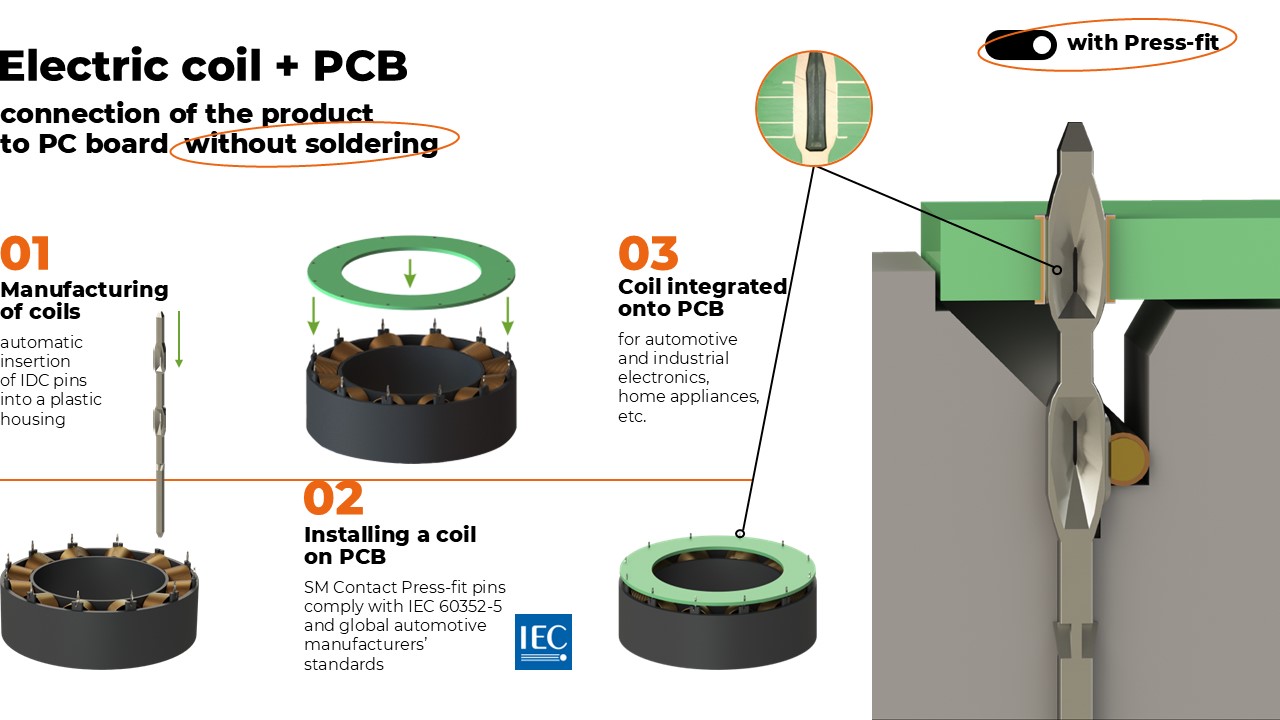

SM Contact IEC certified press-fit technology for plated PCB holes offers the possibility to connect our terminals with PCB as well.

SM Contact IEC certified press-fit technology for plated PCB holes offers the possibility to connect our terminals with PCB as well. Various press-fit sizes are available.

270 million pins supplied in 2024

Continuous wire technology

Pins supplied end-to-end in reels are an excellent alternative to stamped terminals:

— no need of mold

— flexible technology

— up to 80% discount

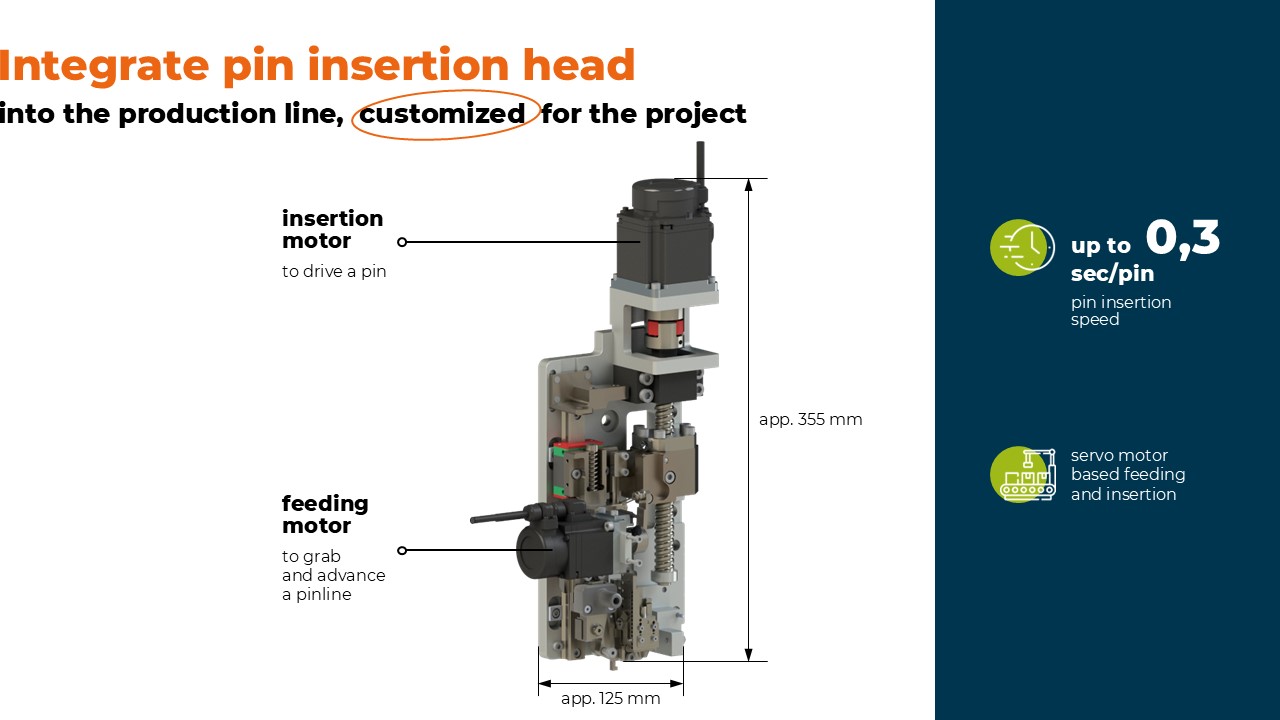

Integrate pin insertion head in your production line

Pin connector for magnet wire brochure
